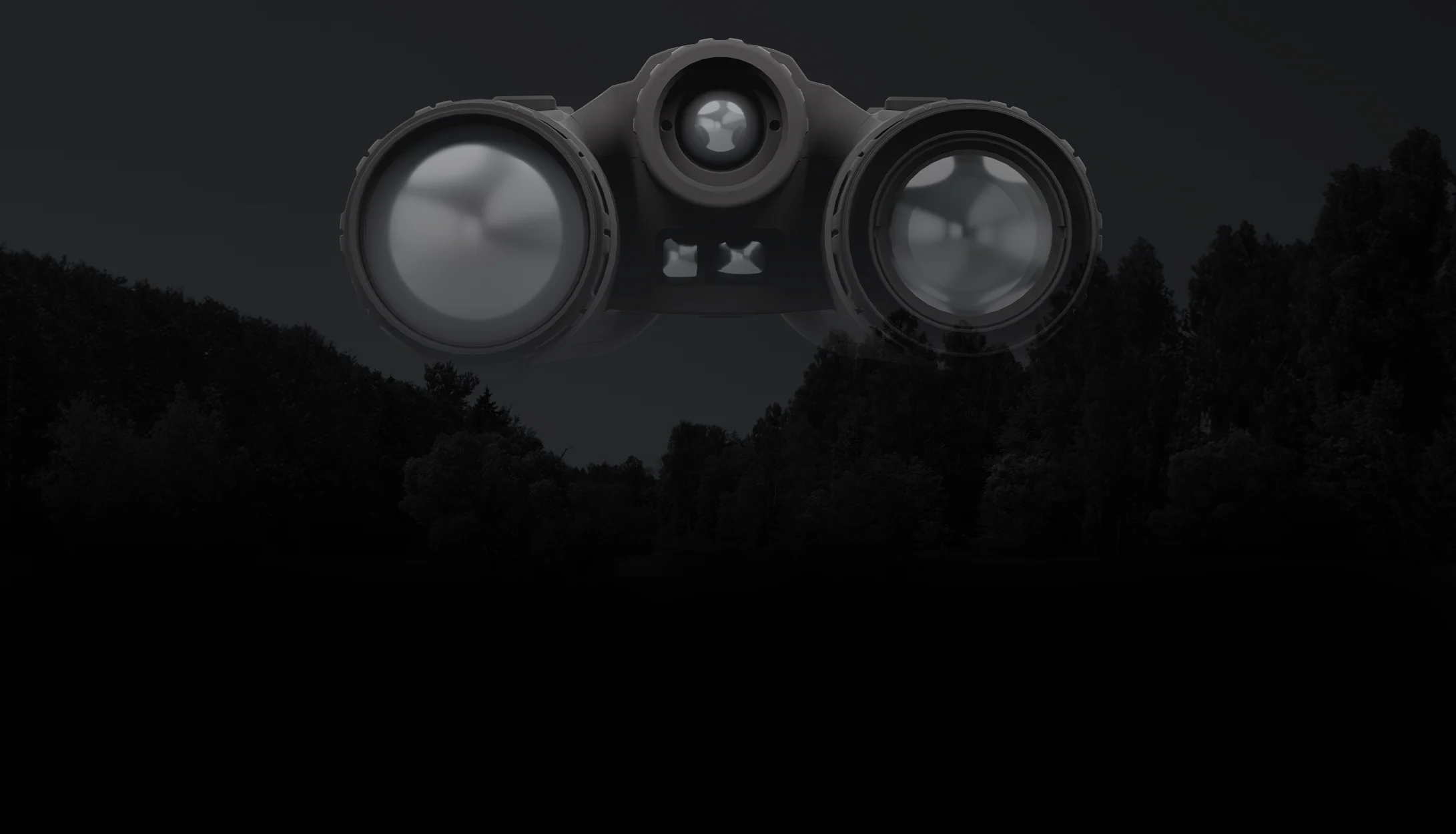

Binox-6 Dual 384

Thermal Imaging Riflescope Series

ATN USA

$ 8,999

Manual Compare

SHARPER, SMARTER, STRONGER

Choose Sensor:

Binox-6 Dual 256

$ 8,999

Sensor

3840×2160 Ultra HD (4K)

Mag x8

6-48x

Detection range

1300 m

Binox-6 Dual 384

$ 8,999

Sensor

3840×2160 Ultra HD (4K)

Mag x8

5.5-44x

Detection range

1600 m

Binox-6 Dual 640

$ 8,999

Sensor

3840×2160 Ultra HD (4K)

Mag x8

3-24x

Detection range

1900 m

4-1 Vision Modes
One Optic - Every Condition

The BINOX-6 adapts instantly with Day, Night, Thermal, and Twilight modes. Use 4K color in daylight, switch to Night Mode with IR for darkness, spot heat with Thermal through fog or brush, or keep clarity at dawn and dusk with Twilight. Whatever the conditions, you stay ready without compromise.

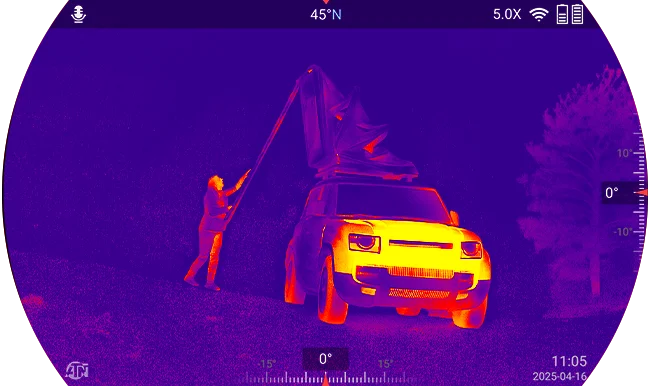

Thermal Mode

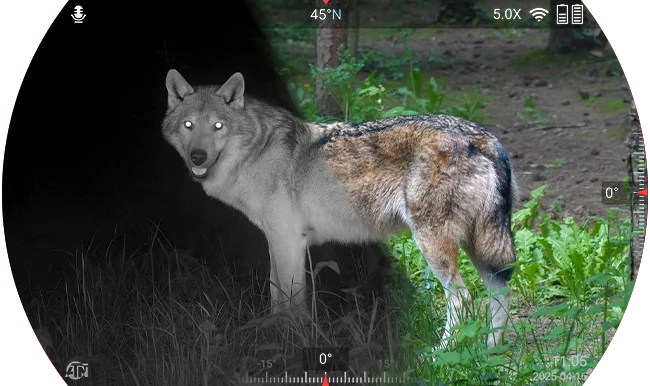

Day/ Night Viewing Modes

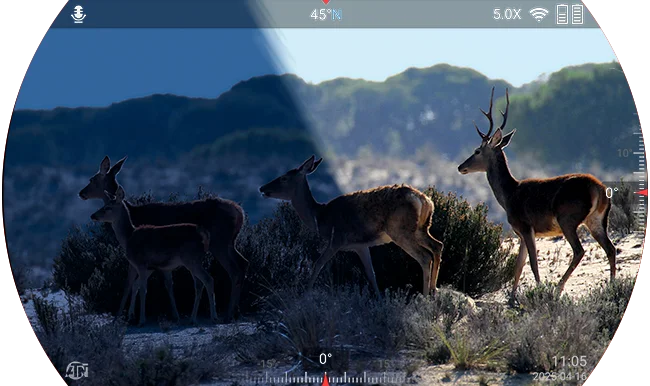

Twilight Viewing Mode

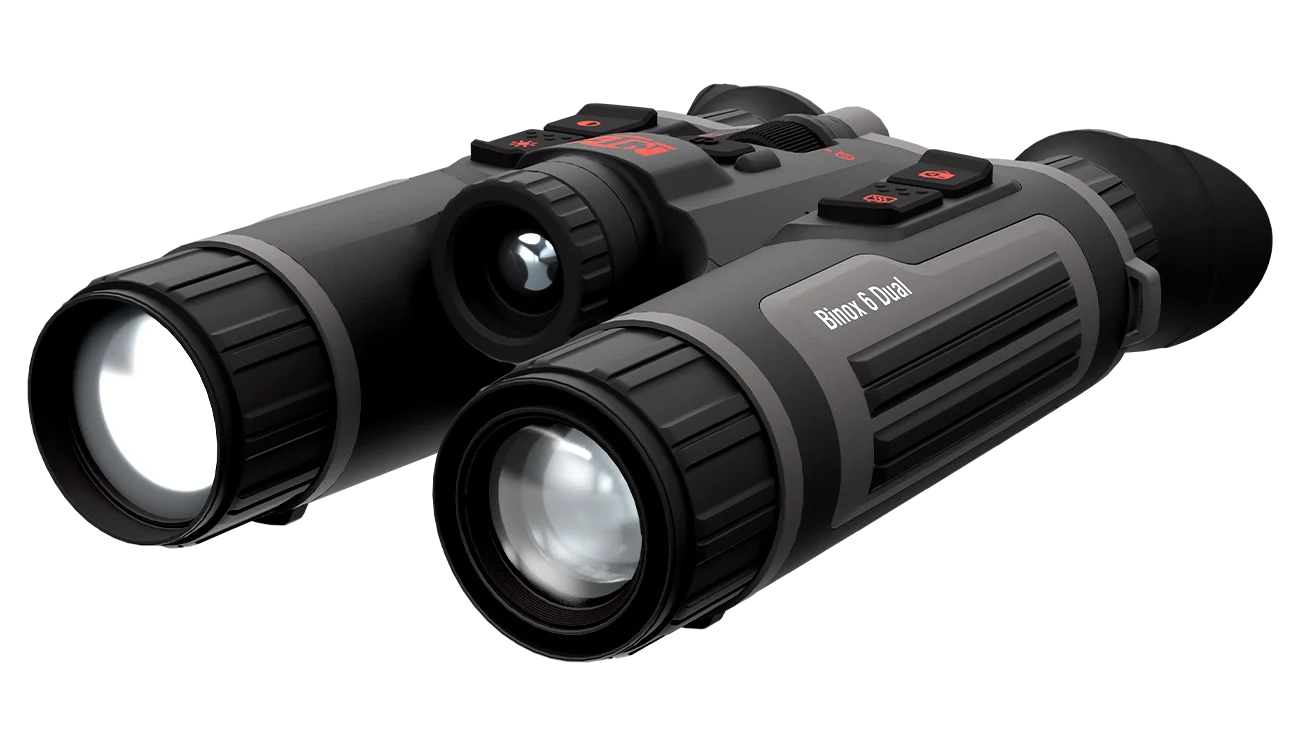

Two Sensors. One Device. Unlimited Vision.

The BINOX-6 combines ATN’s 6th Generation thermal sensor with a 4K Ultra HD CMOS sensor, giving you unmatched flexibility. Enjoy true-to-life color by day and high-sensitivity thermal detection by night—all in one device built to perform in every environment.

Ultra-Definition Thermal Sensor

Next-Level Thermal Precision

640×512

Sensor Resolution

Detector Type

12μm

VOx Uncooled Focal Plane Array

Thermal Sensitivity

≤15mK

NETD

Detection Range

1900 y/m

BINOX-6 is powered by ATN’s 6th Gen thermal engine with a 12μm VOx sensor, offered in 256×192, 384×288, and 640×512 resolutions (≤20mK to ≤15mK). With a fast 50Hz refresh rate and ultra-sensitive NETD, it delivers sharp contrast, clear targets, and reliable detection through fog, smoke, or cover. Choose 256 for efficiency, 384 for detail and range, or 640 for maximum clarity. All models feature germanium lenses and advanced processing for crisp visuals in any environment.

Ultra HD CMOS Sensor —

Next-Level Thermal Precision

3840×2160

Sensor Resolution

CMOS Sensor

1.8"

Detection Range

400y/m

The BINOX-6 uses a large 1.8″ CMOS sensor with Ultra HD 4K (3840×2160) resolution for stunning daytime clarity and vibrant color. As light fades, switch to Night Vision Mode with an onboard IR illuminator for visibility up to 350 meters. From bright daylight to total darkness, the BINOX-6 adapts instantly—delivering sharp detail and constant awareness for hunters, law enforcement, and search teams.

Smart Precision Suite — Hunt Smarter, Not Harder

NEW ATN Technology

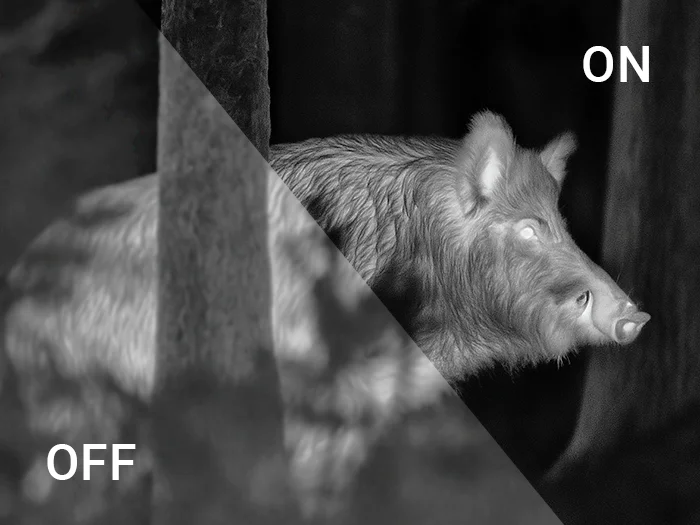

SharpIR® AI Imaging

ATN’s proprietary SharpIR© technology uses advanced AI algorithms to analyze and enhance your view in real time — sharpening image detail, improving contrast, and revealing targets with greater clarity. Whether you're navigating dense brush, scanning through fog, or operating in total darkness, SharpIR© ensures your thermal feed stays crisp, clear, and focused.

Wide Dynamic Range — Clearer Images in Every Scene

The BINOX-6’s WDR evens out hot and cold areas in your thermal view, so bright heat sources don’t overpower the scene. This balance reveals details often missed—like animals behind cover, people in shade, or cooler terrain features—keeping your image clear and complete in any condition.

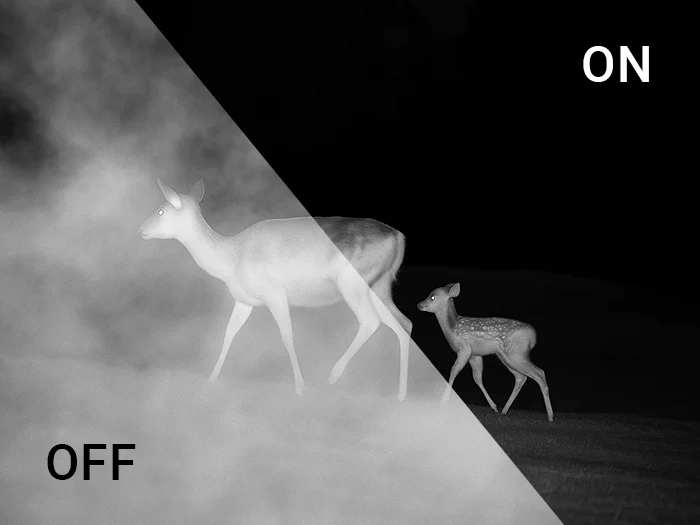

DeFOG Mode — Maintain Clarity Through the Elements

When visibility gets tough, DeFOG mode helps cut through haze, humidity, and thermal bloom to preserve target contrast. Ideal for early mornings, coastal environments, or fog-filled valleys, it enhances image clarity without overexposing or washing out key details — keeping your thermal picture sharp when it matters most.

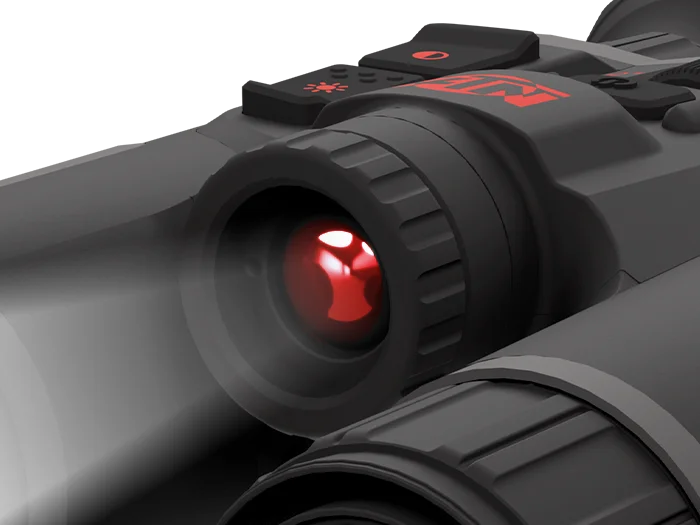

Smart IR Illumination — Light When You Need It

The BINOX-6’s Smart IR automatically adjusts the infrared illuminator to match your surroundings. It delivers the right brightness for clear visibility while reducing glare, conserving battery, and maintaining stealth—whether scanning open fields or moving through tight spaces.

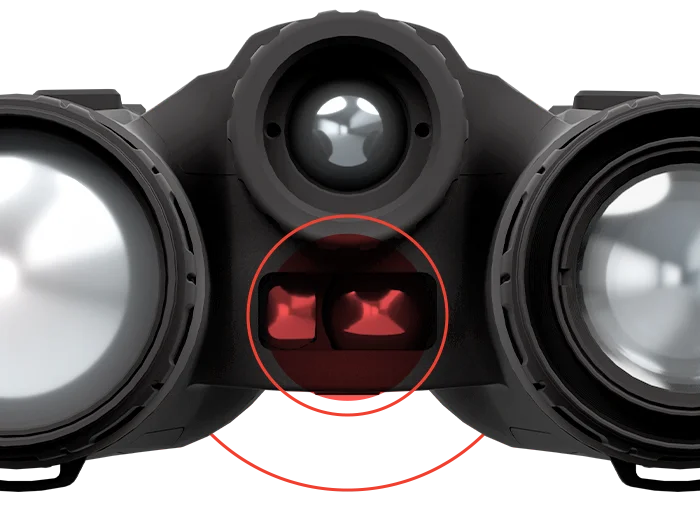

Laser Rangefinder — Precision at 1000 Meters

The BINOX-6 integrates a Class 1 eye-safe 905nm laser rangefinder with a reach of up to 1000 meters. With ±1m accuracy, it gives you reliable distance measurements in the field, whether observing landscapes, scouting terrain, or tracking movement at long range. Built for precision and confidence, the LRF ensures your data is always sharp and dependable.

Hot Point Tracking — No Heat Left Behind

Take the pressure out of sighting in. With Zeroing Freeze, you can pause the image at the moment of impact and make precise reticle adjustments—without trying to hold steady or rush before your shot disappears. Whether you’re zeroing at the range, adjusting in the field, or dialing in a new rifle setup, this feature lets you fine-tune your reticle with complete control. No second-guessing. No wasted ammo. Just a smoother, faster zero that keeps you focused on the hunt.

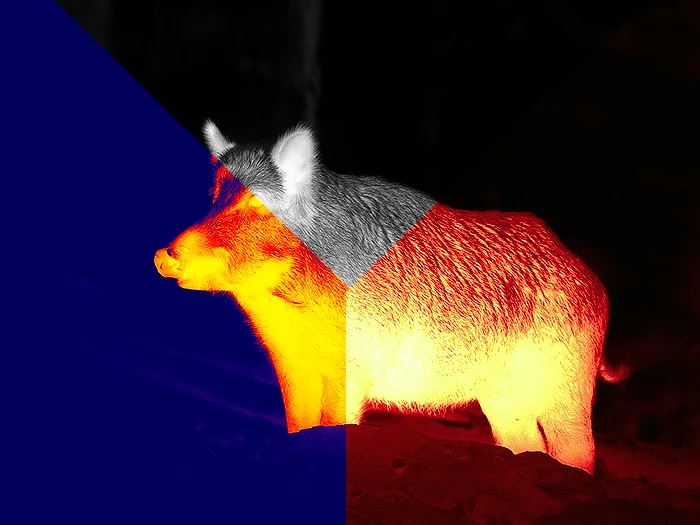

Color Modes for Every Condition — Spot Faster, Scan Smarter

The BINOX-6 includes six thermal palettes—White Hot, Black Hot, High Red, Green Hot, Sepia, and Ironbow—so you can adapt to any mission or environment. White/Black Hot deliver clean contrast for detection, High Red highlights hotspots, while Green Hot and Sepia reduce eye strain. Ironbow offers a detailed gradient for mapping, ideal for search, rescue, or surveillance. Whatever the conditions, the right palette gives you instant visual advantage.

Innovative Design That Delivers Next-Gen Performance

Digital Focus Ring

Engineered for real-world hunting conditions, it responds instantly to your adjustments, ensuring crisp detail and confident target identification — even in brush, fog, or total darkness. No fumbling, no second-guessing. Just precise focus when it matters most.

8× Digital Zoom

Zoom in up to 8× without giving up your position.Track, identify, and engage — all from a safe distance, with no loss of awareness.

All-Day Battery — Power That Keeps Up

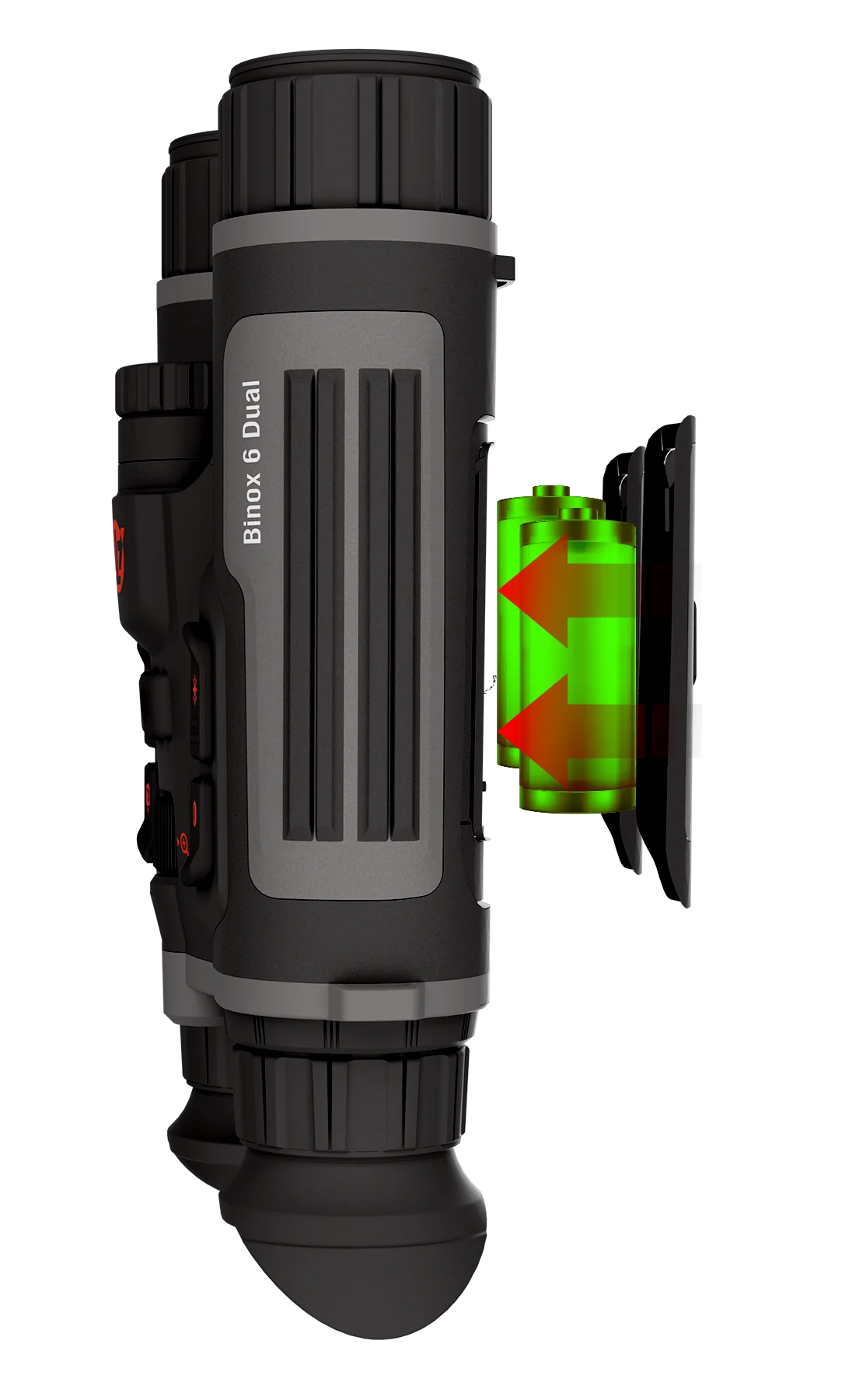

The BINOX-6 is powered by two replaceable 18650 rechargeable batteries, delivering up to 8 hours of continuous operation on a single charge. Whether you're out on a long hunt, covering a full patrol shift, or running extended surveillance through the night, this system is built to go the distance without interruption. And when you need even more runtime, the USB-C port supports external power banks—perfect for mobile setups or multi-day trips. No downtime, no stress—just reliable performance from start to finish.

Adjustable Eye Relief

The adjustable eye-relief lets you fine-tune the display distance for the best viewing position — whether you’re glassing from a stand, tracking on the move, or scanning from a prone position.

Engineered for long sessions, this ergonomic feature reduces eye strain and keeps the image clear, stable, and exactly where you need it — making every observation sharp and effortless.

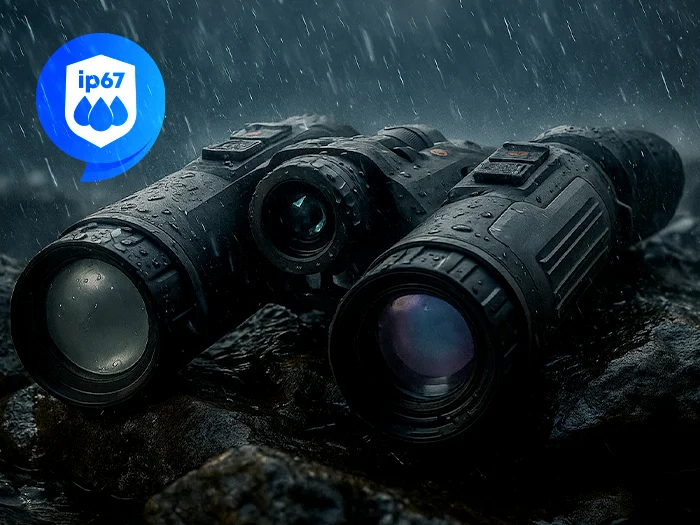

Rugged Housing — Built for the Field

From rough weather to demanding terrain, the BINOX-6 is engineered to perform anywhere. Its hardened polymer and rubber housing is impact-resistant, dustproof, and IP67-rated waterproof—ready to take on rain, mud, and coastal environments without hesitation. Whether you’re on a backcountry trek, night patrol, or long observation, this system is durable, dependable, and built to keep going when it matters most.

Adjustable Eyepieces — Built for Every Set of Eyes

The BINOX-6 features an adjustable interpupillary distance (60–74 mm) to fit a wide range of users comfortably. Whether you're glassing solo or passing the unit between teammates, the customizable spacing ensures a clear, aligned view for every user. Combined with a generous 15 mm eye relief and crisp OLED display, it’s designed for comfort and clarity — even during long observation sessions.

Multimedia Features

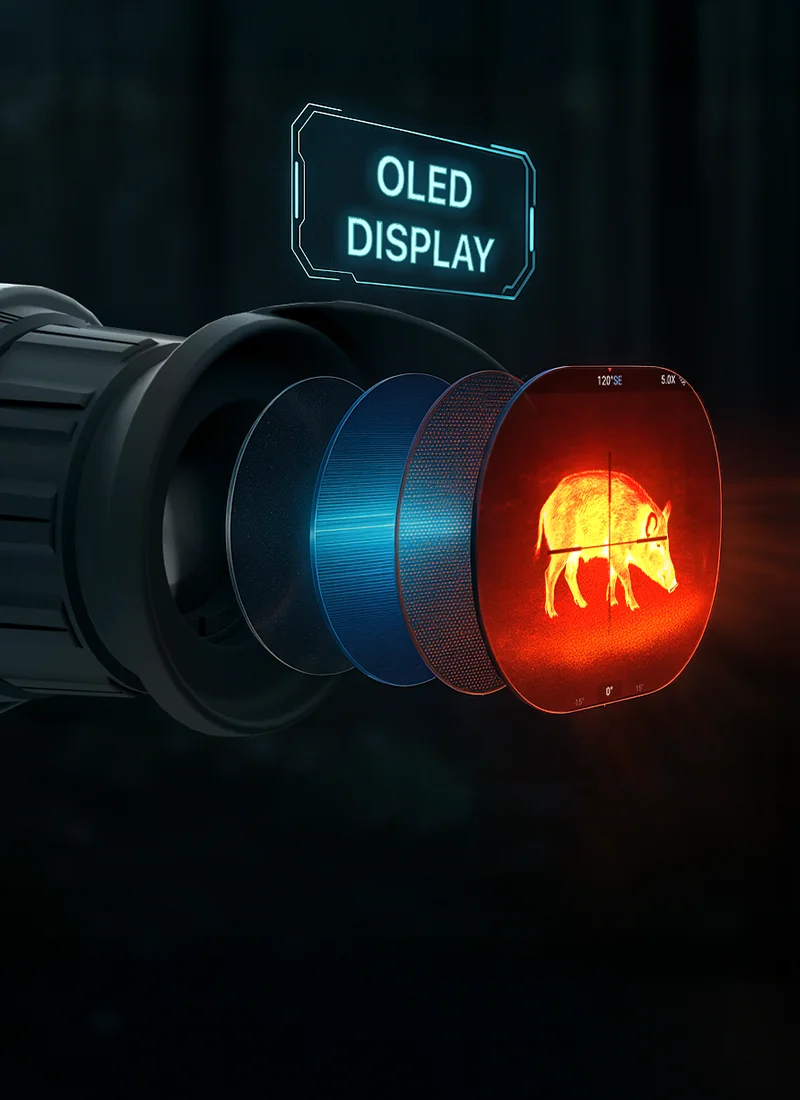

1280×1024 HD OLED Display — Sharp Visuals. Smarter Engagement

The BINOX 6 features a high-resolution 0.37" OLED screen, delivering sharp thermal definition, rich contrast, and smooth response. Designed for long viewing sessions, it reduces eye strain and provides a more comfortable, immersive experience in the field

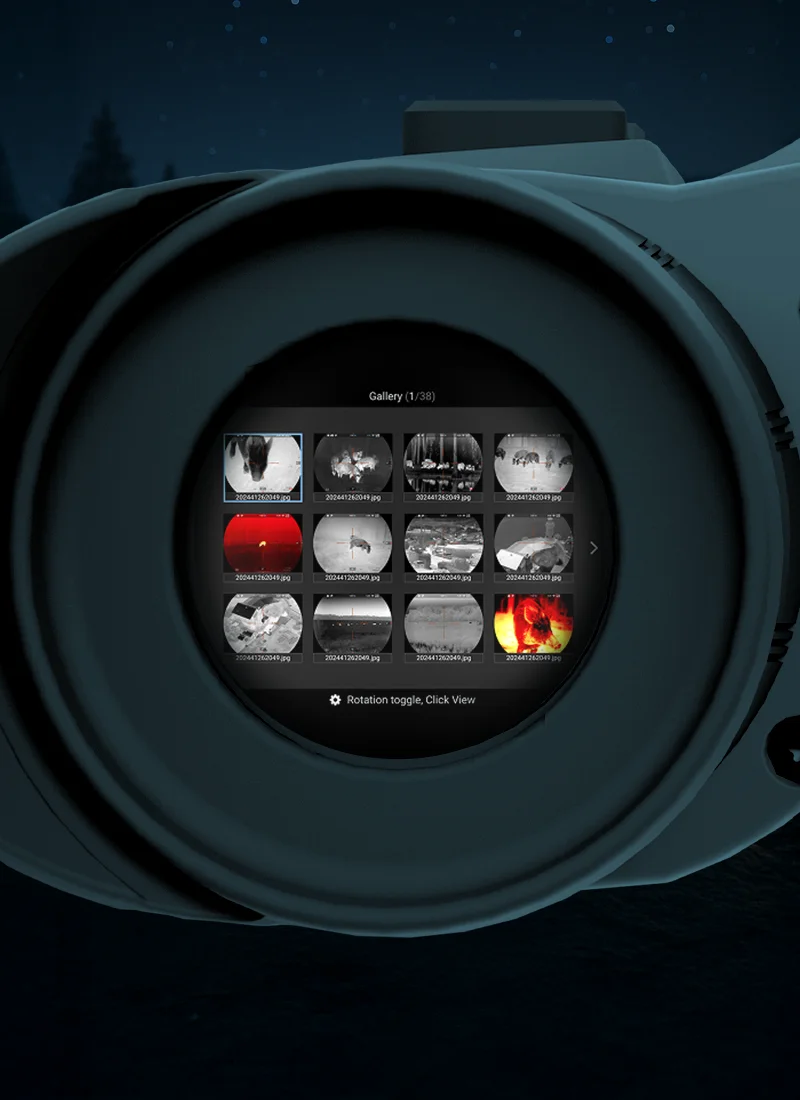

Internal Gallery — Instant Playback in the Field

Access your photos and videos directly from the device — no cables, no cards, no extra gear. Check your shot placement, review footage with a buddy, or confirm your target before packing out. The internal gallery puts every moment at your fingertips — ready to replay, relive, or share.

Built-In Wi-Fi Connectivity — Link Up. Level Up.

With built-in Wi-Fi, your scope connects to a smartphone or tablet via the ATN app — no cables or internet required. Stream live view, replay shots instantly, or coach a partner in real time. Perfect for training, reviewing targets, and staying in control during every hunt.

Onboard Recording — Capture It. Keep It. Share It

The BINOX-6 offers 64 GB of internal storage for seamless recording. Capture crisp 4K day and 1080p thermal video directly to the device — no cards required. Perfect for wildlife, patrols, or inspections, with your data always secure and ready.

Geomagnetic + Gyroscope — Precision Orientation Anywhere

With the Odin 6 MFT, you’ll never lose your bearings. The 3-axis accelerometer and digital compass give real-time heading, pitch, and roll, keeping your view steady and direction locked—whether scanning ridgelines, stalking game, or navigating back in low light.

GPS Tracking — Navigate and Mark With Confidence

Built-in GPS lets you log locations, track movement, and mark points of interest in real time. Whether you’re scouting, stalking, or finding your way back to camp, your exact position is always just one glance away — with no need to stop or second-guess your direction.

Built for Every Mission

TECHNICAL SPECIFICATIONS

SKU	MSBNB6335A
Detector Type	12μm VOx Uncooled Focal Plane Array
Thermal Sensor Resolution	384×288
Refresh Rate	50 Hz
Thermal Sensitivity (NETD)	≤18mK
SharpIR©	Yes
Non-Uniformity Correction (NUC)	Auto / Manual
Thermal Lens System	35 mm (Ge); F/0.95
Thermal Field of View (HxV)	7.5° x 5.7°
Focus Mechanism	Manual
Magnification	5.5-44x
Digital Zoom	1x, 2x, 4x, 8x
Minimum Focus Distance	5 m
Detection Range	1600 m
Color Palettes	White Hot, Black Hot, High Red, Green Hot, Sepia, Ironbow
Day/Night Sensor Type	1.8" CMOS Sensor
Sensor Resolution	3840×2160 Ultra HD (4K)
Day Lens System	55 mm; F/2.0
Day Lens Field of View (HxV)	8.0°×4.5°
Defog	Yes
Night Vision Mode	Yes
Smart IR	Yes
IR Illuminator	Yes
IR Illuminator Settings	Smart IR, Low, Medium, High
IR Illuminator Wavelength	850nm/940nm
Replaceable IR Illuminator	Yes
Effective Distance at Night	350 m
LRF Range	1000 m
LRF Accuracy	±1m
LRF Laser Specs	905 nm, Class 1 (Eye Safe)
Display Resolution	0.49" OLED, 1920×1080 Resolution
Exit Pupil	20 mm
Eye Relief	15 mm
Diopter Adjustment Range	-5 to +5 D
Interpupillary Adjustment Range	60 mm to 74 mm
Internal Storage Capacity	64 GB
Picture-in-Picture (PIP)	Yes
Geomagnetic + Gyroscope	Yes
GPS	Yes
Compass	Yes
Video / Audio Recording	Yes
Image Capture	Yes
Hot Point Tracking	Yes
Internal Gallery	Yes
Standby / Sleep Mode	Yes
Start Up Time	<7 seconds
Stadiametric Rangefinder	No
Media Output	USB Type-C
Built-in Wi-Fi (Hotspot)	Yes
App (Apple Store / Google Play)	Yes (Connect 6 – iOS & Android)
Battery	2x 18650 Rechargeable (Replaceable)
Battery Life	~ 8 hrs
Supports External Power Supply	Yes, 5 VDC/2A, USB Type-C interface
Material	Magnesium Alloy, Plastic & Rubber
Weight	720 g (1.59 lbs)
Dimensions (L x W x H)	210×184.5×55 mm (8.27×7.26×2.17 in)
Mounting	Standard Tripod Mount
Working Temperature	-30°C to 55°C (-22°F to 131°F)
Waterproof / IP Rating	IP67

* This product is subject to one or more of the export control laws and regulations of the U.S. Government and it falls under the control jurisdiction of either the US Department of State or the US BIS-Department of Commerce. It is unlawful and strictly prohibited to export, or attempt to export or otherwise transfer or sell any hardware or technical data or furnish any service to any foreign person, whether abroad or in the United States, for which a license or written approval of the U.S. Government is required, without first obtaining the required license or written approval from the Department of the U.S. Government having jurisdiction. For further information please contact ATN.

INCLUDED ACCESSORIES

Lens Tissue

USB-C Cable

Soft Carrying Case

Q1-USB Charger

1AA Battery

MORE ACCESSORIES

ATN Thermal Targets (set of 3)

The ATN Thermal Targets are a great and easy way to Zero in your Thermal Scope, eliminating the frustration of finding a hot or cold target. It uses special material with an included heat source to give you a thermal signature that is easily picked up by your thermal scope. Package includes a set of 3 thermal targets.
