SHARPER, SMARTER, STRONGER
4-1 Vision Modes
One Optic - Every Condition
The BINOX-6 adapts instantly with Day, Night, Thermal, and Twilight modes. Use 4K color in daylight, switch to Night Mode with IR for darkness, spot heat with Thermal through fog or brush, or keep clarity at dawn and dusk with Twilight. Whatever the conditions, you stay ready without compromise.
Thermal Mode
Day/ Night Viewing Modes
Twilight Viewing Mode
Two Sensors. One Device. Unlimited Vision.
The BINOX-6 combines ATN’s 6th Generation thermal sensor with a 4K Ultra HD CMOS sensor, giving you unmatched flexibility. Enjoy true-to-life color by day and high-sensitivity thermal detection by night—all in one device built to perform in every environment.
Ultra-Definition Thermal Sensor
Next-Level Thermal Precision
640×512
Sensor Resolution
Detector Type
12μm
Thermal Sensitivity
≤15mK
Detection Range
1900 y/m
At the core of the BINOX-6 is ATN’s most advanced thermal system to date—a 6th Generation engine built around a 12μm VOx uncooled focal plane array with exceptional thermal sensitivity. Available in 256×192 (≤20mK), 384×288 (≤18mK), and 640×512 (≤15mK), each sensor configuration delivers sharp thermal imaging with fast 50Hz refresh rates and is optimized for different operational needs. These ultra-sensitive NETD ratings allow the system to detect even the smallest temperature differences—resulting in better contrast, clearer targets, and improved visibility through smoke, fog, or dense cover. The 256 model offers excellent detection capabilities and power efficiency—ideal for users who need reliable thermal performance in a wide range of environments. The 384 adds greater detail and extended range, making it a versatile choice for hunters, land managers, and tactical teams. For those requiring maximum clarity and long-range identification, the 640 model delivers unmatched thermal definition. All variants are paired with high-transmission germanium lenses and advanced image processing to ensure crisp, high-contrast visuals—so no matter your mission, there’s a configuration built to meet it.
Ultra HD CMOS Sensor —
Next-Level Thermal Precision
3840×2160
Sensor Resolution
CMOS Sensor
1.8"
Detection Range
400y/m
The BINOX-6 uses a large 1.8″ CMOS sensor with Ultra HD 4K (3840×2160) resolution for stunning daytime clarity and vibrant color. As light fades, switch to Night Vision Mode with an onboard IR illuminator for visibility up to 350 meters. From bright daylight to total darkness, the BINOX-6 adapts instantly—delivering sharp detail and constant awareness for hunters, law enforcement, and search teams.
Smart Precision Suite — Hunt Smarter, Not Harder
NEW ATN Technology
Powered by ATN’s proprietary SharpIR© technology, the BINOX-6 uses advanced AI algorithms to enhance image sharpness and clarity in real time. This dynamic processing improves edge definition and target contrast, making it easier to identify heat signatures in cluttered or low-visibility environments—like spotting a coyote slipping through brush or picking out hogs hidden in tall grass. You’re not just seeing heat—you’re seeing defined shapes and crisp movement, giving you the confidence to act fast and act smart.
Wide Dynamic Range — Clearer Images in Every Scene
The BINOX-6’s Wide Dynamic Range (WDR) feature helps you see more detail in both hot and cold areas of your thermal image. In many thermal systems, extremely hot objects can overpower the view—making cooler areas harder to see. WDR balances the image so you don’t lose important details like animals behind cover, people in shade, or cooler sections of terrain or equipment. Whether you’re tracking movement, scanning a landscape, or inspecting gear, WDR keeps everything clear—so nothing gets lost in the heat.
DeFOG Mode — Maintain Clarity Through the Elements
When visibility gets tough, DeFOG mode helps cut through haze, humidity, and thermal bloom to preserve target contrast. Ideal for early mornings, coastal environments, or fog-filled valleys, it enhances image clarity without overexposing or washing out key details — keeping your thermal picture sharp when it matters most.
Smart IR Illumination — Light When You Need It
The BINOX-6’s onboard infrared illuminator features Smart IR technology that automatically adjusts brightness based on your surroundings. This intelligent system delivers just the right amount of infrared light—reducing unnecessary glare, preserving stealth, and conserving battery life during extended use. Whether you're scanning open fields or operating in confined spaces, Smart IR gives you optimized visibility without manual adjustments or wasted power.
Integrated Laser Rangefinder — Know Your Distance. Own the Shot.
The BINOX-6 comes equipped with a built-in laser rangefinder capable of measuring distances up to 1,000 yards with ±1-yard accuracy. Whether you’re stalking game across open terrain, surveying property lines, or conducting tactical reconnaissance, instant range data gives you the confidence to plan, engage, and act with precision. No extra gear, no added weight—just reliable rangefinding built directly into your binoculars.
Hot Point Tracking — No Heat Left Behind
When speed and clarity matter most, the BINOX-6’s Hot Point Tracking feature automatically highlights the hottest object in view—making it easy to locate people, animals, or heat sources instantly. Whether you're tracking game through thick brush, scanning debris fields during a rescue, or identifying equipment hotspots in low-visibility environments, this feature ensures the target stands out, even in cluttered or chaotic scenes. It’s a powerful tool for hunters, SAR teams, law enforcement, and industrial users who need fast thermal identification without second guessing.
Color Modes for Every Condition — Spot Faster, Scan Smarter
The BINOX-6 offers a full range of thermal color palettes to adapt to your environment, preferences, and mission needs. With six options—White Hot, Black Hot, High Red, Green Hot, Sepia, and Ironbow—you can quickly switch to the mode that offers the best contrast for your target and surroundings. White Hot and Black Hot provide clean, high-contrast imaging ideal for general detection and tracking. High Red enhances heat intensity for quick identification of hot spots, while Green Hot and Sepia reduce eye fatigue during prolonged viewing sessions. Ironbow offers a balanced gradient that excels in detailed thermal mapping, making it especially useful for search and rescue, industrial inspection, and surveillance. Whether you're scanning brush for game, securing a perimeter, or spotting a heat source in harsh conditions, the right palette gives you an instant visual advantage.
Innovative Design That Delivers Next-Gen Performance
Digital Focus Ring
Engineered for real-world hunting conditions, it responds instantly to your adjustments, ensuring crisp detail and confident target identification — even in brush, fog, or total darkness. No fumbling, no second-guessing. Just precise focus when it matters most.
8× Digital Zoom
Zoom in up to 8× without giving up your position.Track, identify, and engage — all from a safe distance, with no loss of awareness.
Long Battery Life — Power That Keeps Up

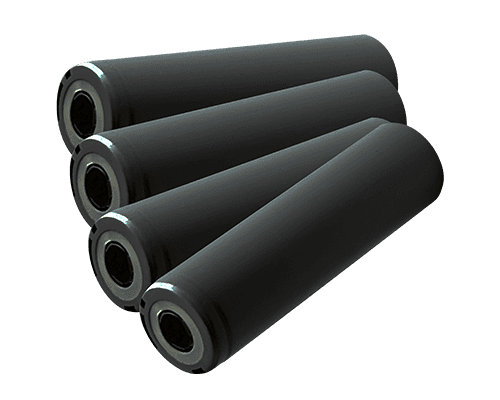

The BINOX-6 is powered by two replaceable 18650 rechargeable batteries, delivering up to 8 hours of continuous operation on a single charge. Whether you're out on a long hunt, covering a full patrol shift, or running extended surveillance through the night, this system is built to go the distance without interruption. And when you need even more runtime, the USB-C port supports external power banks—perfect for mobile setups or multi-day trips. No downtime, no stress—just reliable performance from start to finish.
Adjustable Eye Relief
The adjustable eye-relief lets you fine-tune the display distance for the best viewing position — whether you’re glassing from a stand, tracking on the move, or scanning from a prone position.
Rugged Housing — Built for the Field
From unpredictable weather to demanding terrain, the BINOX-6 is engineered to perform in the real world. Its hardened polymer and rubber housing is impact-resistant, dustproof, and IP67-rated waterproof—ready to withstand rain, mud, and harsh conditions without hesitation. Whether you're trekking through backcountry trails, on a night patrol, or navigating coastal environments, this system is built to survive the elements and keep going when it counts. Durable, dependable, and ready for anything the mission throws your way.
Adjustable Eyepieces — Built for Every Set of Eyes
The BINOX-6 features an adjustable interpupillary distance (60–74 mm) to fit a wide range of users comfortably. Whether you're glassing solo or passing the unit between teammates, the customizable spacing ensures a clear, aligned view for every user. Combined with a generous 15 mm eye relief and crisp OLED display, it’s designed for comfort and clarity — even during long observation sessions.
Multimedia Features
Built for Every Mission
TECHNICAL SPECIFICATIONS
| SKU | MSBNB6225A | |||||
| Detector Type | 12μm VOx Uncooled Focal Plane Array | |||||
| Thermal Sensor Resolution | 256×192 | |||||
| Refresh Rate | 50 Hz | |||||
| Thermal Sensitivity (NETD) | ≤20mK | |||||
| SharpIR© | Yes | |||||
| Non-Uniformity Correction (NUC) | Auto / Manual | |||||
| Thermal Lens System | 25 mm (Ge); F/0.9 | |||||
| Thermal Field of View (HxV) | 7.0° x 5.3° | |||||
| Focus Mechanism | Manual | |||||
| Magnification | 6-48x | |||||
| Digital Zoom | 1x, 2x, 4x, 8x | |||||
| Minimum Focus Distance | 3 m | |||||
| Detection Range | 1300 m | |||||
| Color Palettes | White Hot, Black Hot, High Red, Green Hot, Sepia, Ironbow | |||||
| Day/Night Sensor Type | 1.8" CMOS Sensor | |||||
| Sensor Resolution | 3840×2160 Ultra HD (4K) | |||||
| Day Lens System | 55 mm; F/2.0 | |||||
| Day Lens Field of View (HxV) | 8.0°×4.5° | |||||
| Defog | Yes | |||||
| Night Vision Mode | Yes | |||||
| Smart IR | Yes | |||||
| IR Illuminator | Yes | |||||
| IR Illuminator Settings | Smart IR, Low, Medium, High | |||||

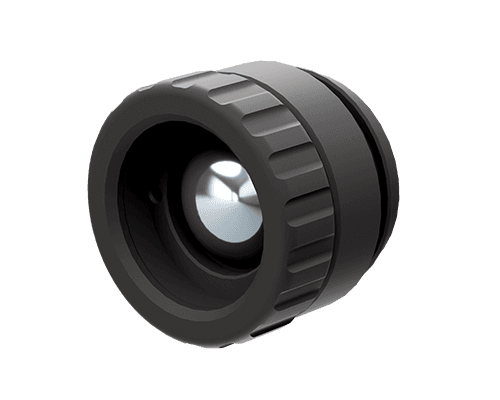

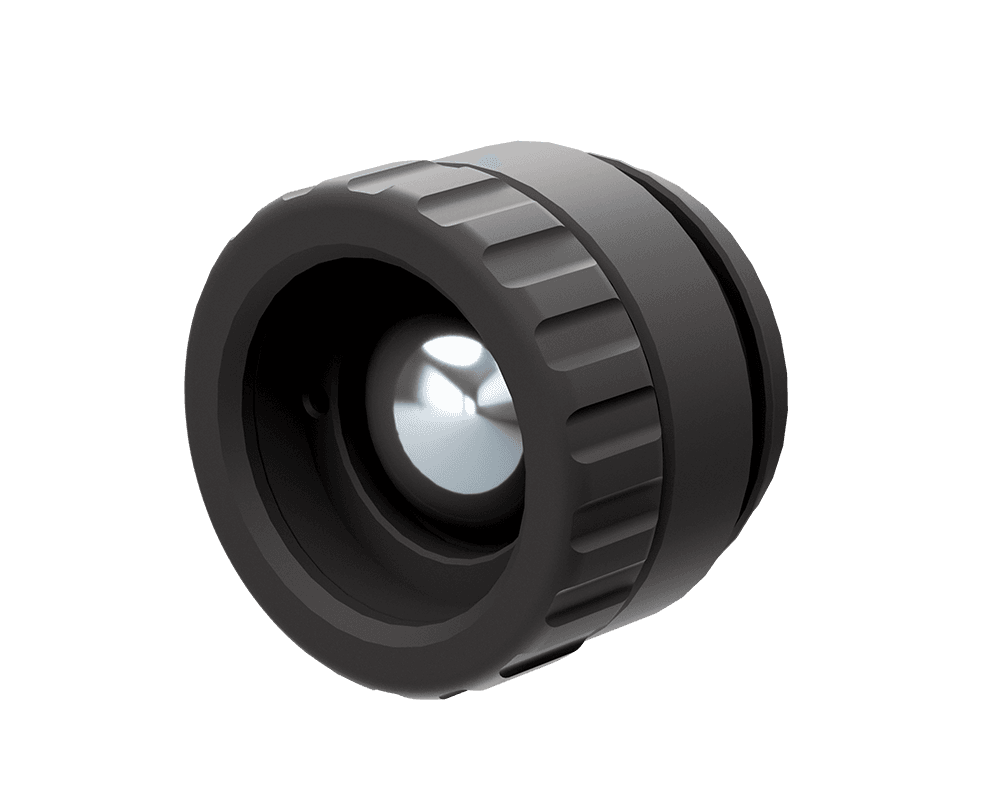

| IR Illuminator Wavelength | 850nm/940nm | |||||
| Replaceable IR Illuminator | Yes | |||||
| Effective Distance at Night | 350 m | |||||
| LRF Range | 1000 m | |||||
| LRF Accuracy | ±1m | |||||
| LRF Laser Specs | 905 nm, Class 1 (Eye Safe) | |||||
| Display Resolution | 0.49" OLED, 1920×1080 Resolution | |||||
| Exit Pupil | 20 mm | |||||
| Eye Relief | 15 mm | |||||
| Diopter Adjustment Range | -5 to +5 D | |||||
| Interpupillary Adjustment Range | 60 mm to 74 mm | |||||
| Internal Storage Capacity | 64 GB | |||||
| Picture-in-Picture (PIP) | Yes | |||||
| Geomagnetic + Gyroscope | Yes | |||||
| GPS | Yes | |||||
| Compass | Yes | |||||
| Video / Audio Recording | Yes | |||||
| Image Capture | Yes | |||||
| Hot Point Tracking | Yes | |||||
| Internal Gallery | Yes | |||||
| Standby / Sleep Mode | Yes | |||||
| Start Up Time | <7 seconds | |||||
| Stadiametric Rangefinder | No | |||||
| Media Output | USB Type-C | |||||
| Built-in Wi-Fi (Hotspot) | Yes | |||||
| App (Apple Store / Google Play) | Yes (Connect 6 – iOS & Android) | |||||
| Battery | 2x 18650 Rechargeable (Replaceable) | |||||
| Battery Life | ~ 8 hrs | |||||
| Supports External Power Supply | Yes, 5 VDC/2A, USB Type-C interface | |||||
| Material | Magnesium Alloy, Plastic & Rubber | |||||
| Weight | 710 g (1.56 lbs) | |||||
| Dimensions (L x W x H) | 210×184.5×55 mm (8.27×7.26×2.17 in) | |||||
| Mounting | Standard Tripod Mount | |||||
| Working Temperature | -30°C to 55°C (-22°F to 131°F) | |||||
| Waterproof / IP Rating | IP67 | |||||
